In order to create the bitmap images, I used a PC program by Mike Brent called Convert9918 initially designed for the TI 99/4A computer. However, since both the TI and the Adam share the same VDP, the program works for both. Here's a link to it: http://www.harmlesslion.com/cgi-bin/onesoft.cgi?2, and it's very easy to use although you do have to play with the different settings in order to get the best image conversion. The output of the program is 2 files for each image, a pattern file and a color file, with the extension of TIAP and TIAC respectively. You need to change these extensions to .P and .C for use with the Slide Show program. Once converted, the images can be transferred to the Adam using the Adam Image Manager.

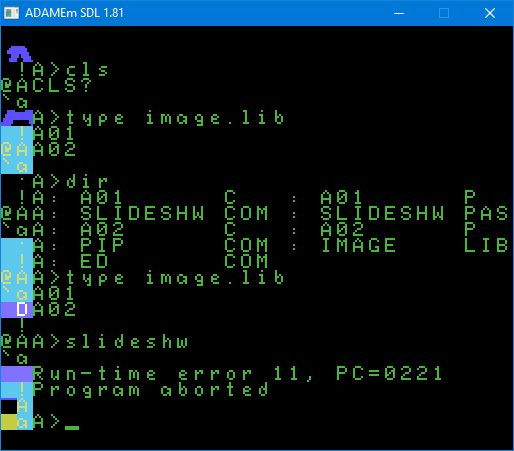

Put all the image files (.P and .C files) on the same disk as the Slide Show program, then create a text file using Adamed listing the names of each image file in capital letters without the extensions, one on each line, and save it as IMAGE.LIB. This library file will be used by Slide Show to load the appropriate images from disk. If it does not find it, then it will complain and terminate. Slide Show is optimized with the way Adamed stores files on disk, so IMAGE.LIB should only be created using the Adamed editor. Here's a sample of an IMAGE.LIB file:
Code: Select all
FLOWER
STARTREK
ISLAND

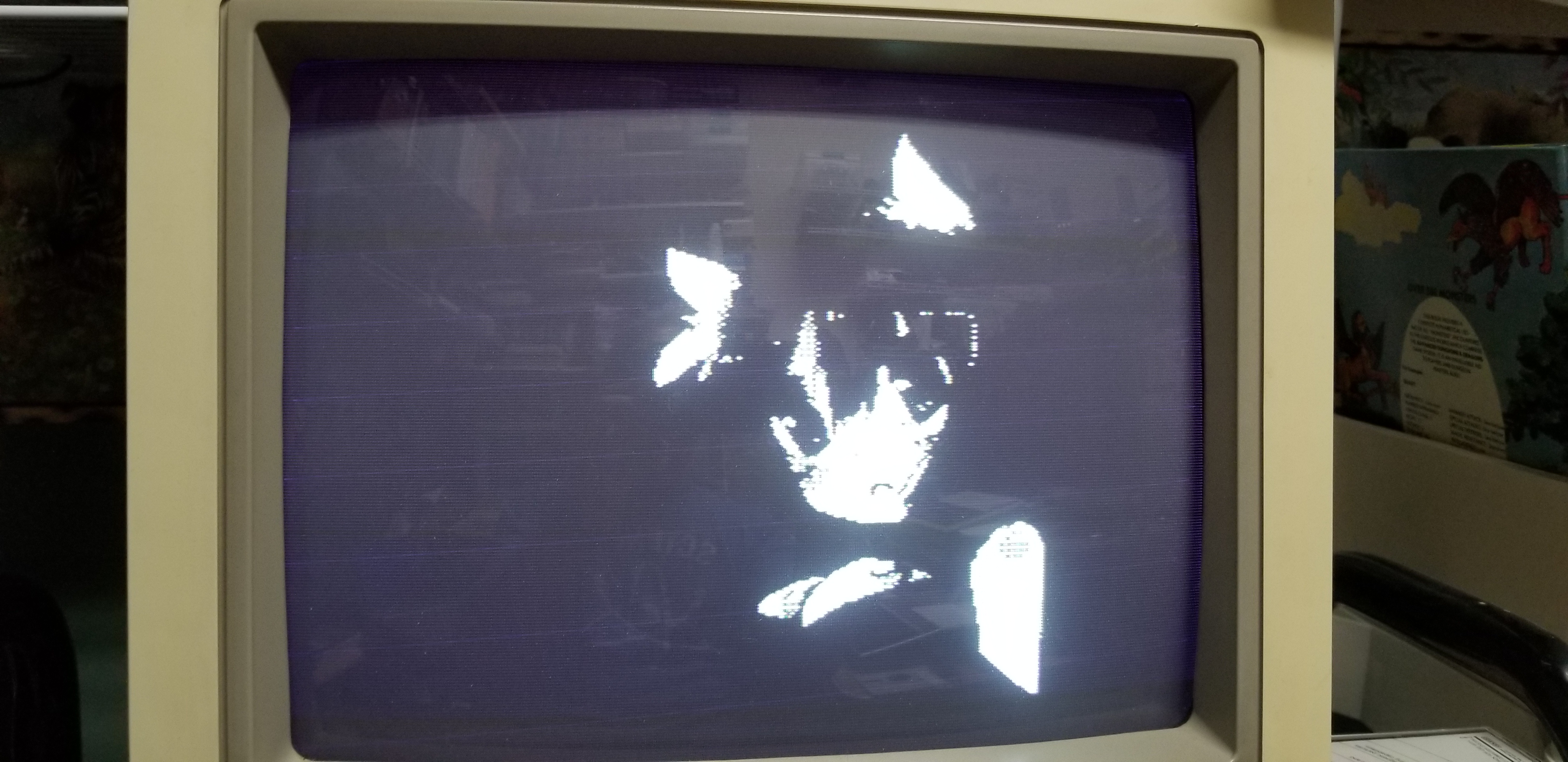

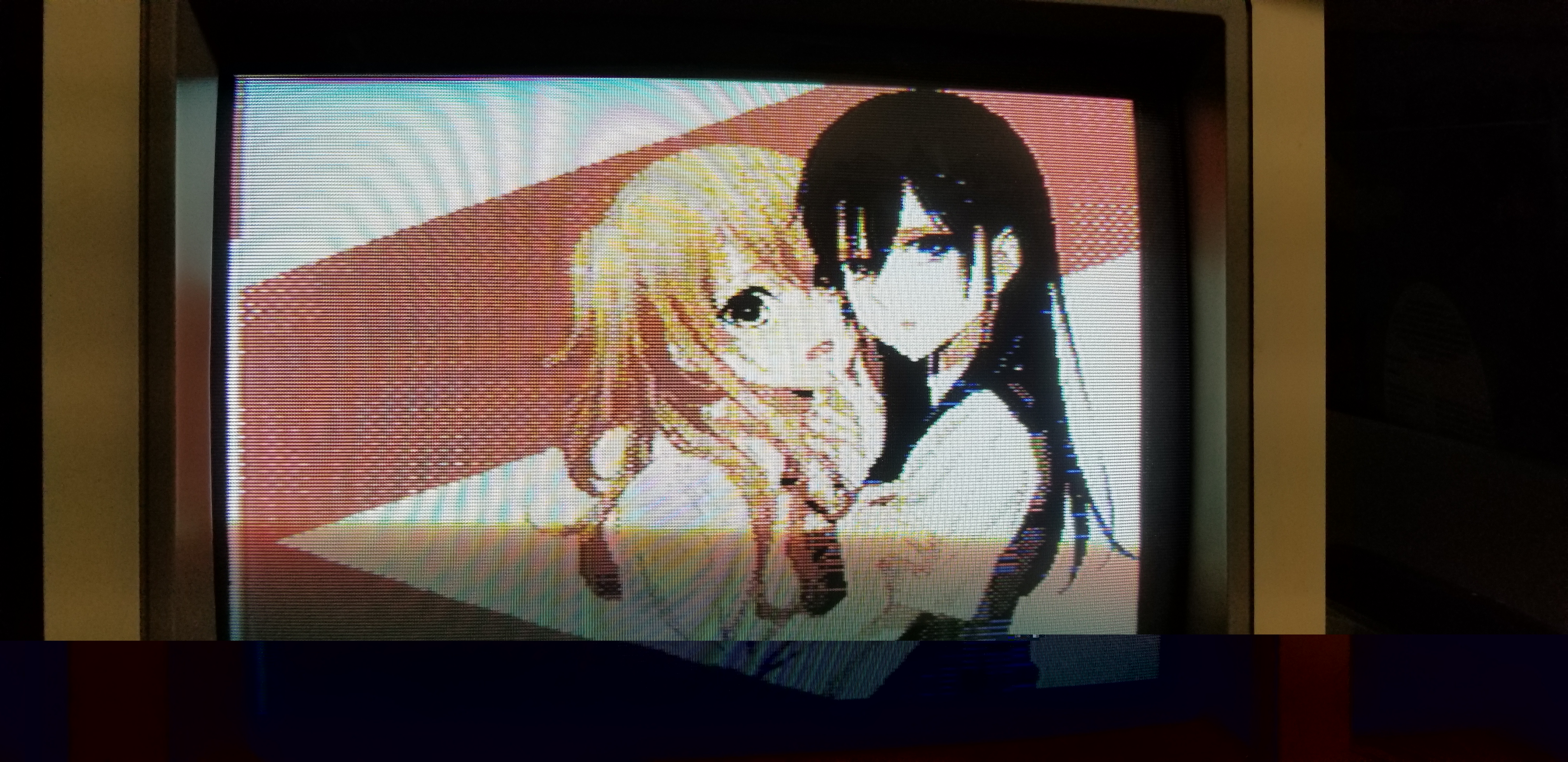

Here's a short demo:
https://youtu.be/FFICTWPQuhQ
And here's the Turbo Pascal 3 listing for the curious:
Code: Select all
program Slideshow;
Label
RstFile, Loop;
Type
Fname = String[11];
Var
OK : Boolean;
FilNam : Fname;
N, SIT, I, ImgNum : Integer;
ImgLib : Text;
FilChr : Char;
procedure ShowImg(Var OK : Boolean;
FilNam : Fname);
Var
FilStr : String[11];
ImgFile : File;
Pass : Integer;
Buffer : array[1..6144] of Byte;
begin
Pass := 1;
repeat
FilStr := '';
if Pass = 1 then
FilStr := FilNam + '.P'
else
FilStr := FilNam + '.C';
Assign (ImgFile, FilStr);
{$I-} Reset(ImgFile) {$I+};
OK := (IOresult = 0);
if not OK then
exit;
{Read file header and discard}
Blockread(ImgFile, Buffer, 1);
{Read image data}
Blockread(ImgFile, Buffer, 48);
if Pass = 1 then
{Write pattern data to VDP}
inline($21/Buffer/$11/0/0/1/
0/$18/$CD/$5D/$DA)
else
{Write color data to VDP}
inline($21/Buffer/$11/0/$20/
1/0/$18/$CD/$5D/$DA);
Close(ImgFile);
Pass := Pass + 1;
until Pass = 3;
end;
begin
{Initialize screen image table}
{Fill with 0 to $FF times 3}
SIT := $1800;
for I := 1 to 3 do
begin
N := 0;
repeat
inline($2A/SIT/$EB/$21/N/
1/1/0/$CD/$5D/$DA);
N := N +1;
SIT := SIT + 1;
until N = 256;
end;
{Disable sprites}
{Place $D0 at start of Sprite
Attribute List @ $3880}
inline($11/$80/$38/1/$01/0/$3E/$D0/
$CD/$5A/$DA);
{Open picture library file}
Assign(ImgLib,'IMAGE.LIB');
{$I-} Reset(ImgLib) {$I+};
OK := (IOresult = 0);
if not OK then
begin
inline($CD/$66/$DA);
writeln('Library file error!');
halt;
end;
Loop:
ImgNum := 1;
repeat
Readln(ImgLib,FilNam);
Delete(FilNam,Pos(' ',FilNam),40);
{Display image}
ShowImg(OK, FilNam);
if not OK then
goto RstFile;
Delay(2000);
if KeyPressed then
begin
{Restore VDP settings}
inline($CD/$66/$DA);
close(ImgLib);
halt;
end;
ImgNum := ImgNum + 1;
if ImgNum = 4 then
begin
read(ImgLib, Filchr);
read(ImgLib, Filchr);
ImgNum := 1;
end;
until EOF(ImgLib);
RstFile:
reset(ImgLib);
goto Loop;
end.
Show us what you come up with!
