Page 2 of 2
Re: Turbo Pascal 3 bitmap graphics extensions
Posted: Sat Jul 04, 2020 10:41 pm
by joltguy
Milli wrote: ↑Sat Jul 04, 2020 12:32 pm
TDOS uses the VRAM to save a copy of the CCP so that may be the problem
Ahh! That’s probably it.
Re: Turbo Pascal 3 bitmap graphics extensions
Posted: Mon Jul 06, 2020 1:07 pm
by Wmaalouli
joltguy wrote: ↑Sat Jul 04, 2020 8:43 am
Is it odd that these extensions don't work under T-DOS? The demo programs compile fine but when you run the resulting .com file the system just freezes up. I thought T-DOS it was 99% CP/M compatible but maybe this falls into that 1%? If these could work in T-DOS it'd be awesome mainly because its support for more drives and disks larger than 160K sure gives a lot more breathing room. And... the TP editor actually seems to work halfway decent in T-DOS.
Also, I can't seem to find the
Joyst() and
Pad() procedures that are called in the SndTest demo program. I looked in
control.pas but there is only a
Controller() procedure defined there.
As Milli stated, TDOS messes up the VRAM, which is why the extensions will not work as they rely on the bitmap mode which consumes large swaths of the VRAM. As for the TP3 editor, I never had any luck getting it to work properly with the Adam, which was partly one of the reasons I wrote ADAMED, a 40 column text editor (you can find it under this section).
https://youtu.be/oPghkOnewaE
As for the joystick extensions, it seems I gave you an older listing for the sound and controller demo. Attached is the updated listing where the Joyst and Pad functions were consolidated into a single function called CONTROLLER. Sorry about that.
Re: Turbo Pascal 3 bitmap graphics extensions
Posted: Mon Jul 06, 2020 7:32 pm
by joltguy
Wmaalouli wrote: ↑Mon Jul 06, 2020 1:07 pm
As for the joystick extensions, it seems I gave you an older listing for the sound and controller demo. Attached is the updated listing where the Joyst and Pad functions were consolidated into a single function called CONTROLLER. Sorry about that.
Awesome, thanks! Too bad about TDOS but at least now I understand why it won’t work.
Re: Turbo Pascal 3 bitmap graphics extensions
Posted: Mon May 24, 2021 3:17 pm
by Wmaalouli

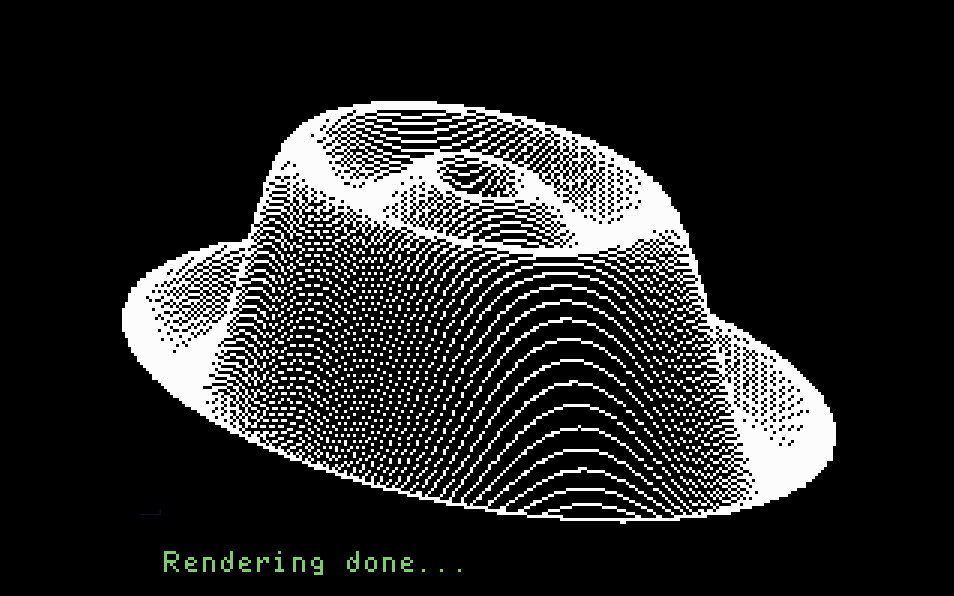

Here's a brief demo of using the bitmap mode. It's a program that procedurally generates a "fedora" via a mathematical function.
- Hat.jpg (131.44 KiB) Viewed 2357 times
Re: Turbo Pascal 3 bitmap graphics extensions
Posted: Mon Oct 25, 2021 7:56 pm
by wanghanche
Hi Sir, May I have plain source code from TP3BITMAP.ZIP? which I could download and explore to AdamTP3.DSK and BMPDEMO.DSK, but after that, I have no way to open them by any tools that I can find, I saw demo on the youtube and like to study it for learning to write console game for fun, thank you very much.
Re: Turbo Pascal 3 bitmap graphics extensions
Posted: Wed Oct 27, 2021 8:24 am
by Wmaalouli
Sure. Here you go. The source code is formatted for 40 columns because I used my own Adamed editor on the Adam computer directly to program the extensions. Also there is a lot of inline 8080 assembly in the code to access the various functions of the Adam.
Please feel free to ask any questions you may have.
Re: Turbo Pascal 3 bitmap graphics extensions
Posted: Fri Oct 29, 2021 2:21 am
by wanghanche
Hi Wmaalouli, 3Q so much,
(3=Than=Taiwanese Sound, Q=You)
